With the continuous implementation of the "Made in China 2025" strategy, intelligent manufacturing has become one of the main directions of various industries. Similarly, in the field of blister packaging machines, intelligence has become a key point for enterprises to break ice. It is understood that although there is still a long way to go for intelligence, many companies have taken important steps in intelligent automation linkage.

Hualian Pharmaceutical Machinery Co., Ltd. develops high-speed blister packaging and automatic cartoning linkage production line to realize automatic blister forming, feeding, blistering, automatic inspection and rejection, automatic lining of medicine plates, and transfer to high-speed automatic cartoning machine silo; cantilever The aluminum-plastic aluminum blister packaging and automatic carton-linking production line has a new patented rotary nozzle and intelligent conveyor belt lining technology, which can achieve 600 stable grids per minute and can be sent to the boxed drug store. High speed matching is achieved with the ZHJ-400D automatic cartoner.


Main technical parameters of ZHJ-400D high speed blister packaging machine
Model DPH-380D
Punching frequency 60-180 times / minute times / min
Maximum forming area 240×370mm
Maximum forming depth 13mm
Traction stroke Punching: 20-120mm Forming: 80-250mm
Section Specifications Reference Specifications Standard: 80 × 57, 95 × 65, 103 × 43 (Customized allowed according to user requirements)
Packaging material Cold aluminum 0.14-0.16×380mm
Standard PVC rigid sheet 0.15-0.5×380mm
Standard PTP aluminum foil 0.02-0.035×380mm
Reel aperture is 70-76mm
Air consumption ≥0.3m3/h (self-provided) Pressure: 0.6-0.8Mpa
Mold cooling tap water or circulating water tap water or recycle water 60L/h
The total power of the power supply is about 22KW
Main motor 3.0KW
Dimensions 4100×1030×1750mm
Machine weight 3500Kg
Main technical parameters of ZHJ-400D high speed automatic cartoning machine
Model ZHJ-400
Packing speed ≤400 (box ctns/min)
Carton size (50-200) × (20-80) × (15-60) mm
Manual size (100-260) × (100-180) mm
Power supply 380VAC, 50HZ 5KW
Main motor power 2.2Kw
Air pressure 0.6-0.8Mpa
Air consumption ≥5m3/h
Dimensions 4500×1500×1700
Machine weight 4000kg

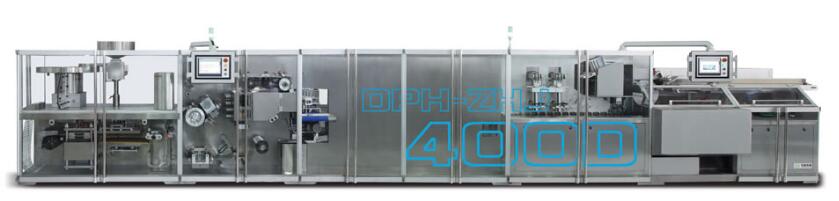

DPH-ZHJ400D high-speed aluminum-plastic blister packaging and automatic cartoning linkage production line: smarter, more efficient, blister packaging 600 boards / minute, automatic boxing 400 boxes / minute! Hualian Pharmaceutical Machine Sales Tel: +86 577-65612699, our address: Hualian Pharmaceutical Machinery Industrial Park, Jinger Road, Feiyun New District, Ruian City, Zhejiang Province
