Flat blister packaging machine features
In the previous issue, we detailed the characteristics of the roller-type aluminum-plastic blister packaging machine. Today we will continue to introduce you to the flat aluminum-plastic blister packaging machine.

The flat blister packaging machine adopts flat plate mold for forming and sealing, which has the following advantages: good molding quality, high dimensional precision, good reproducibility of small parts; beautiful blister cover, uniform wall thickness, good gloss transparency; It does not warp; the plates are arranged flexibly, adapt to the change of plate size, and have a large forming area; a larger stretching ratio can be obtained with a film of the same thickness (the maximum forming depth of the blister can reach more than 35 mm). Since the composite positive pressure forming technology (using the punch and the gas pressure) can complete the blister forming process in the same process, a blister having a complicated shape can be formed. In addition, the general plate type blister packaging machine has a large filling position space, and a plurality of filling mechanisms can be arranged at the same time, which is easier to implement - packaging of a plurality of medicines on one plate, expanding the packaging range and improving the packaging grade.

 The flat blister packaging machine adopts flat plate mold for forming and sealing, which has the following advantages: good molding quality, high dimensional precision, good reproducibility of small parts; beautiful blister cover, uniform wall thickness, good gloss transparency; It does not warp; the plates are arranged flexibly, adapt to the change of plate size, and have a large forming area; a larger stretching ratio can be obtained with a film of the same thickness (the maximum forming depth of the blister can reach more than 35 mm). Since the composite positive pressure forming technology (using the punch and the gas pressure) can complete the blister forming process in the same process, a blister having a complicated shape can be formed. In addition, the general plate type blister packaging machine has a large filling position space, and a plurality of filling mechanisms can be arranged at the same time, which is easier to implement - packaging of a plurality of medicines on one plate, expanding the packaging range and improving the packaging grade.

The overall structure of the flat blister packaging machine is divided into a box structure and a frame structure. When the box-type structure machine is working, the molds such as forming, heat sealing, typing, stamping, punching, etc. are required to make synchronous linear reciprocating motion in the vertical direction. This movement is realized by the cam mounted on the main drive shaft, so the movement The load can not be dispersed, impact, and the stability of the transmission is poor; the preheating, forming, stepping, heat sealing, typing and stamping, punching and other mechanisms of the frame structure machine are installed on the plane of the large board, when the machine is working It is very convenient to adjust the position of the plate relative to the forming, heat sealing, typing and stamping, and the moving load can be dispersed, so the smoothness of the transmission is better.

The use of flat blister packaging can improve the mechanization and automation level of product packaging, reduce costs, beautify the decoration products, extend the storage period, increase the use value of the products, and improve the competitiveness of the products.

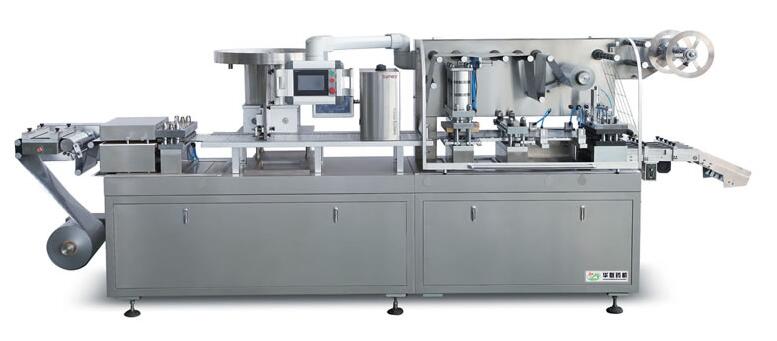

Conclusion Finally, we introduce a flat blister packaging machine: DPB-260/330HL

blister packaging machine
