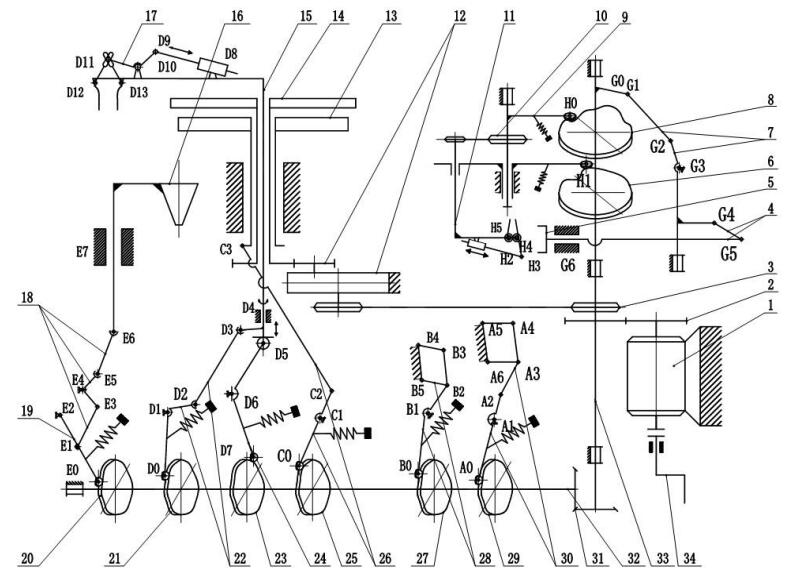

Schematic diagram of the overall scheme of the automatic rotary packing machine

Schematic diagram of the overall scheme of the automatic rotary packing machine


1-FM motor
2-gear set
3-sprocket set
4-7-bag delivery linkage group
5-bag holder
6-Boom rotating cam
8- forearm rotating cam
9-link
10-sprocket set
11-Small arm and bag clamping mechanism
12-Intermittent mechanism and gear set
13-Main turntable cam
14-Six station turntable
15-Bag arm link
16-Blanking funnel
17-Bag holder clip
18, 19-Blanking hopper lifting link group 20-Blanking hopper lifting cam
21-Rotating cam of bag supporting mechanism
22-Rotating Cam Link Group
23-Bag lifting cam
24-lift link
25-Main turntable rotating cam
26-Turntable rotating cam linkage group
27- put bag cam
28-Pocket cam connecting rod group
29-Machine clamp opening and closing cam
30-Machine clamp opening and closing convex
Wheel Link Group
31 Bevel gear set
32-Reference main drive shaft
33-Main drive shaft
34-Manual drive mechanism

The schematic diagram of the overall scheme of the automatic rotary packing machine is shown in the figure. The main motor rotates, transfers power and movement to the main drive shaft through the gear set, and then splits the transmission (the principle is the same as Figure 3.1). Refer to the rotation of the main drive shaft to drive the six cams to rotate, the lifting cam drives the action of the lifting link group of the funnel to realize the lifting operation of the hopper; the rotating cam of the bag supporting mechanism rotates, and the reciprocating rotation of the bag supporting arm is realized through the link group; the lifting cam drives The lifting link swings to realize the reciprocating lifting operation of the bag support arm; the main turntable rotating cam rotates, and the main turntable cam rotates through the connecting rod group to match the six-station turntable operation; the bag putting cam rotates, through the connecting rod group to make the machine clamp tension In the same way, the opening and closing cam of the machine clamp is coordinated with the connecting rod group to open the machine clamp and clamp the bag. The other way of power and movement mainly acts on the core position of the packaging operation-the six-station turntable device. The main drive shaft transmits the movement and power to the intermittent indexing mechanism and gear set through the sprocket set to drive the turntable to rotate. On the third road, the main drive shaft directly transmits power and motion, driving the rotary cam of the boom to rotate, realizing the swing of the boom; at the same time, driving the rotary cam of the forearm and its connecting rod to move, through the sprocket group, the forearm and the bag are clamped The mechanism swings; the bag delivery linkage group moves to realize the lifting operation of the bag storage device.
