The structure principle of the pushing mechanism of the cartoning machine

The function of this mechanism is to quickly and accurately push the materials into the opened packaging box when the materials are transported to the station of the pushing mechanism.
The structure principle of the pushing mechanism of the cartoning machine

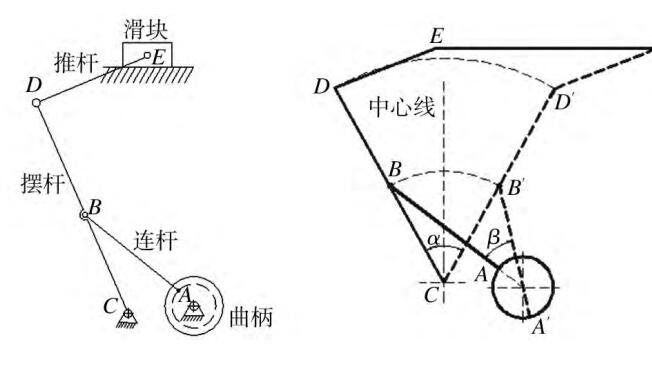

In the figure, the crank is fixed on the drive shaft and rotates with the drive shaft. Both ends are connected with joint bearings, and both ends B are fixed on the crank. The connecting rod and the pendulum rod are hinged, and the pendulum rod is connected to the push rod through joint bearings. Connected. The crank is the original moving part. When the crank rotates, the connecting rod drives the pendulum rod to make alternative motions. The push rod connected to the other end of the pendulum rod is driven by the pendulum rod to make the slider move linearly alternately in the horizontal direction to realize box packing. The pushing action of the cartoning machine.
