Some knowledge about cartoning machine and improvement research

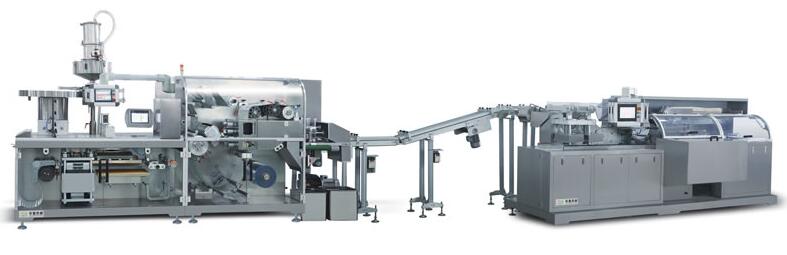

Recommended product: DPH-ZHJ series high-speed blister packaging and automatic cartoning linkage production line



1. According to the process requirements of taking and placing boxes in the cartoning machine , analyze the structure of the traditional planetary gear system suction box mechanism, establish a mathematical model of the mechanism, and solve the movement trajectory and motion characteristics of the suction cup end of the planetary gear system suction box mechanism, and determine The optimal trajectory parameters and corresponding motion characteristics of the box suction mechanism of the circular gear planetary gear train point out the limitations of the box suction mechanism of the circular gear planetary gear train, and provide theoretical support for the innovative design of the planetary gear box suction mechanism.


2. Aiming at the limitation of the box suction mechanism of the circular gear planetary gear train, an ellipse-circular gear planetary gear box taking sucker mechanism is proposed on the premise of meeting the requirements of the box taking and placing process. With the help of computer software, the trajectory and motion characteristics of the suction cup end of the suction box mechanism are optimized. The ellipse eccentricity e is equal to 0.05, ri is equal to 85.3, and r2 is equal to 49.3. The trajectory and the motion characteristics of the suction cup end of the gear train suction box mechanism are compared. The results show that under the premise that the box picking point and the box placing point remain unchanged, the acceleration formed by the ellipse at the box picking and placing station is formed by a round gear. The acceleration of the trajectory at the box picking and placing station was 14.3% slower, before placing the box, the speed was 14.3% slower, and the maximum acceleration of the mechanism was reduced by 9.9%. . According to the functional requirements of the material conveying device and the requirements of different box shapes, a box holder with adjustable carton length is designed, and the tilt angle of the box holder is 30° from the horizontal.

3. Analyze the process requirements and main parameters of the pushing mechanism and the box sealing mechanism, study the quick return characteristics of the pushing mechanism and the folding process of the carton. Under the premise of meeting its process requirements and adjustable size, compare the pushing mechanism and The box sealing mechanism is simplified and innovative in structure. According to the actual carton size, determine the structure parameters of the pushing mechanism and the box sealing mechanism, carry out simulation calculations on the pushing mechanism, analyze the speed and acceleration of the contact point of the push rod and the material, the speed and acceleration are continuous, and the speed stroke coefficient K Equal to 1.23. The material conveying device is researched and designed, and the belt welding baffle is used instead of the chain plus baffle to reduce the noise of the machine and improve the transmission accuracy.

4. Taking medical tape packaging as the research object, develop and test a high-speed automatic cartoning machine suitable for boxes of different lengths. Perform 3D modeling and virtual simulation on the automatic cartoning machine to verify the trajectory of the suction box. Perform three-dimensional modeling of the cartoning machine as a whole to further optimize the structure of the interference part of the whole machine; trial-produce and install prototypes and carry out cartoning tests.
