Three cartoning methods of cartoning machine

The cartoning methods of the cartoning machine are mainly as follows:

1. Manual boxing method
Manual cartoning is the simplest method of cartoning. It does not require equipment investment and maintenance costs, but it is slow, low labor productivity, and product packaging that requires high food hygiene conditions is easy to cause microbial contamination, so it is generally under modern large-scale production conditions Not used.

2. Semi-automatic boxing method
The semi-automatic cartoning method is usually completed by the operator with the cartoning machine to complete the cartoning and packaging, taking the box, printing, opening, sealing, and sealing by the machine, and the product is usually completed manually.

The structure of the semi-automatic cartoning machine is relatively simple, but the type and size of the carton can be changed. It is more suitable to adjust the machine after changing the variety. It is very suitable for the cartoning of multiple varieties and small batch products. The production capacity is generally 30-50 boxes/min. Some semi-automatic cartoning machines are used to pack a group of products, such as small bags of tea, coffee, soups and condiments and other foods. Each box can contain 10-20 packets. The boxing speed is matched with the bag making and filling machine. Relatively every time a box is inserted, the machine runs intermittently. It automatically puts small bags of products into the box and counts. After the box is filled, it automatically rotates, rotates the empty box, and removes the full box and capping. It is completed by manual operation. The general production speed is 50~70 sachets/min (1 sachet each time), or 100~140 sachets/min (2 sachets each time), and it is equipped with a small bag making and filling machine.

The semi-automatic cartoning machine is mostly upright, and most products are filled by hand.

3. Automatic boxing method
The production speed of the automatic cartoning machine is very high, generally 500~600 boxes/min, and the ultra-high speed can reach 1000 boxes/min. However, the equipment investment is large, the machine structure is complex, the operation and maintenance technical requirements are high, and the product variety and size range are limited. Therefore, in this respect, it is not as flexible as the semi-automatic cartoning machine, and is generally suitable for single-variety large-volume cartoning.


Recommended cartoning machine production line
DPH380S-DXH500S

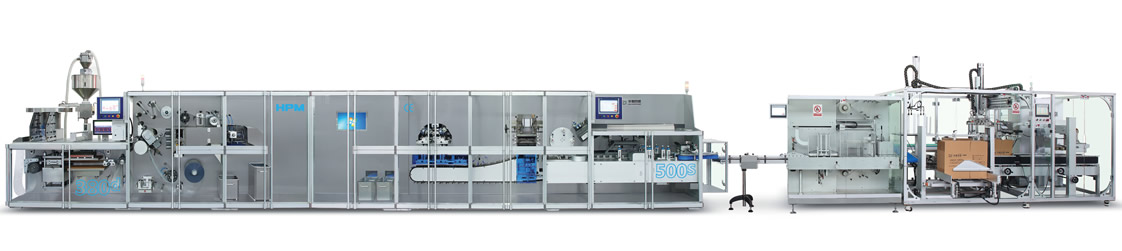

Complete system of intelligent production line for drug blister cartoning and packaging (full servo)

Pharmaceutical blister cartoning intelligent production line complete system production line is suitable for high-speed aluminum-plastic packaging of medicines, especially capsules, tablets, sugar-coated tablets, automatic detection and rejection, and medicine boards are automatically queued and sent to the high-speed automatic cartoning machine silo, high-speed automatic The cartoning machine puts the medicine board and instructions into the carton and seals the box for batch number. The whole process is fully automatic packaging, which can achieve the purpose of reducing space and saving labor. High automation and cleanliness are more in line with GMP requirements. It can also be equipped with board inspection machine, checkweigher, strapping machine, box packing machine, palletizing robot, etc. to form a complete production line system.
