Automatic Tube Filling And Sealing Machine products (automatic hose filling and sealing machine, automatic filling and packaging production line)
In the last issue, we have compiled the bag packaging machine products (for bag type automatic packaging machine, bag type vacuum packaging machine, vacuum bag type packaging machine) https://www.hlyj.com/cn/ShowNews.asp ?id=41 data, in this issue, we will bring you the product information of hose filling and sealing machine in the future. Hualian automatic hose filling and sealing machine has three kinds of machines together, each machine is divided into several kinds. Models, the configuration of each model is completely different, so there is a big gap in speed and performance. Please choose according to the needs of your own factory. The following describes the three recommended hose filling and sealing machine product parameters, product images, product advantages and so on.

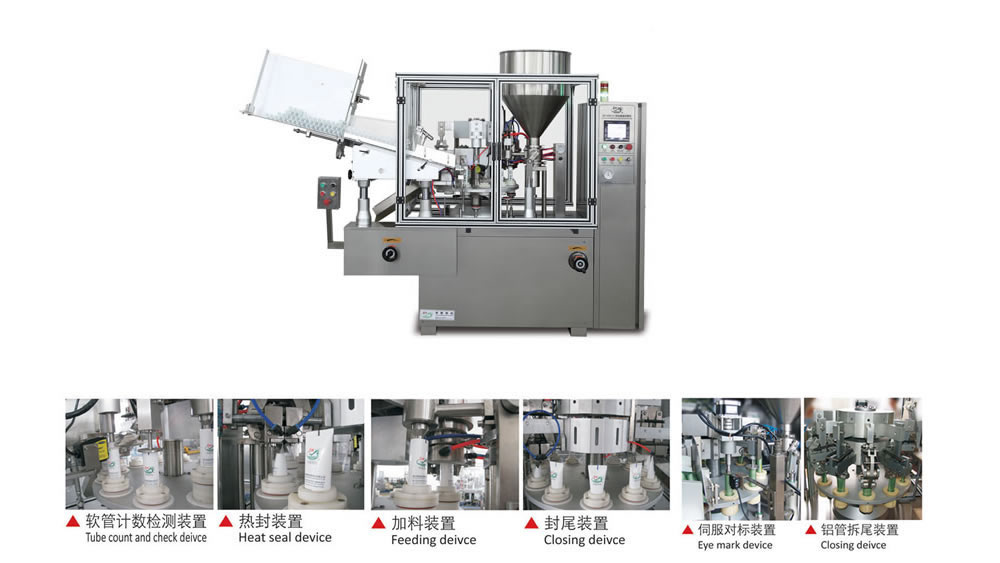

The first one: GF-400F/L - Automatic Tube Filling And Sealing Machine

The GF-400F/L Automatic Tube Filling And Sealing Machine adopts 12-station design, which can realize various folding packaging of metal pipes. The same machine can easily realize the packaging of plastic pipes and metal pipes by changing the molds and accessories. It is an ideal equipment for filling and sealing aluminum tubes, plastic tubes and composite tubes in cosmetics, pharmaceuticals, food, adhesives and other industries, and meets GMP requirements.
Performance characteristics of GF-400F/L automatic hose filling and sealing machine:
1. High-quality LCD display programming controller and button combined operation screen, fully grasp the equipment's stepless speed regulation, parameter setting, production count statistics, air pressure indication, fault display and other operating conditions, making the operation simple and user-friendly.
2. Fully complete the whole process from supply, calibration, inert gas (optional), filling, sealing, coding, and finished product.
3. High-precision benchmarking system reduces the range of color difference between the tube and the color scale.
4. External adjustment position, digital display of position, quick and accurate adjustment (suitable for multi-standard, multi-species production).
5. Integration of machine, light, electricity and gas, realize no pipe no filling, supply pipe not in place, low air pressure, automatic display (alarm): automatic function such as automatic shutdown when opening the protective door.
GF-400F/L automatic hose filling and sealing machine product configuration:
Model GF-400L GF-400F
Hose material Metal tube, aluminum tube Plastic tube, composite tube
Hose diameter (mm) φ10-φ42 φ10-φ60
Hose length (mm) 50-250 (can be customized 50-300 (can be customized
Filling capacity 5-500ml / support (adjustable 5-800ml / support (adjustable
Filling accuracy ≤±1% ≤±1%
Turntable speed (rev / min) 3-10 2.5-7
Production capacity (support / hour) 30-70 (adjustable 30-70 (adjustable Adjustable)
Compressed air 0.55-0.65Mpa 0.1 m3/min 0.55-0.65Mpa 0.1m3/mi
Motor work 2Kw (380V/220V 50Hz) 2.2Kw (380v220v 50Hz)
Heat sealing power 3Kw 3Kw
Dimensions (mm) 2620×1020×1980 2620×1020×1980
Host weight (kg) 1100 1100

The second paragraph: GF400-ZHJ80 automatic filling and packaging production line

GF400-ZHJ80 automatic filling and packaging production line is the high-tech and high-tech production weakness developed by our company's R&D center based on years of experience in developing automation products. It adopts PLC programmable controller and man-machine interface operation panel, which can automatically complete the supply. Pipe, standard, filling, sealing, coding, finished product export, manual folding, carton opening, item into box, printing batch number (including production date), sealing and other processes. It can also be combined with three film packaging machines, heat shrinking machine and packing machine to form a complete production line, which can meet the needs of mass production.


The third paragraph: GF-800F/L - Automatic Tube Filling And Sealing Machine

GF-800F/L Automatic Tube Filling And Sealing Machine adopts 12-station design, which can realize various folding packaging of metal tubes. The same machine can easily realize the packaging of plastic tubes and metal tubes by changing molds and accessories. . It is an ideal equipment for filling and sealing aluminum tubes, plastic tubes and composite tubes in cosmetics, pharmaceuticals, food, adhesives and other industries, and meets GMP requirements.
Features of GF-800F/L automatic hose filling and sealing machine:
High-quality LCD display programming controller and button combined operation screen, fully grasp the equipment's stepless speed regulation, parameter setting, production count statistics, air pressure indication, fault display and other operating conditions, making the operation simple and user-friendly.
Completely complete the whole process from supply pipe, benchmarking, filling inert gas (optional), filling, sealing, coding, and finished product.
The high-precision benchmarking system reduces the range of color differences between the tube and the color scale.
External adjustment position, digital display of position, quick and accurate adjustment (suitable for multi-standard, multi-species production).
Integration of machine, light, electricity and gas, realizes no tube and no filling, and the tube is not in place, low air pressure, automatic display (alarm): automatic function such as automatic shutdown when opening the protective door.
GF-800F/L automatic hose filling and sealing machine configuration:

Model GF-800L GF-800F
Hose material Metal tube, aluminum tube Plastic tube, composite tube
Hose diameter (mm) φ13-φ50 φ13-φ60
Hose length (mm) 80-250 (can be customized
Filling capacity 5-400ml / support (adjustable
Filling accuracy ≤±1% ≤±1%
Turntable speed (rev / min)
Production capacity (support / hour) 60-120 60-120
Compressed air 0.55-0.65Mpa 0.1m3/mi 0.55-0.65Mpa 0.1m3/mi
Motor work 2.2Kw (380v220v 50Hz) 2.2Kw (380v220v 50Hz)
Heat sealing power 6Kw 6Kw
Dimensions (mm) 3270×l470×2000 3270×1470×2000
Host weight (kg) 2200 2200
Buy more hose filling and sealing machines to enter the product area to view: https://www.hlyj.com/Products/73/

Hualian's hose filling and sealing machine is safe, the quality is good! Sales hotline: 0577-65612699
