The fully automatic high-speed cartoning machine https://www.hlyj.net/Products/72/ is a device (synchronization and logic) that automatically completes the entire cartoning process by simulating the movement of the human hand.
      The basic actions of the cartoning machine include the insertion of the medicine board into the box, the filling instructions, the sealing of the carton, the batch number, etc., and a series of mechanical and electrical controls are automatically controlled by the PLC.
      The basic components of the automatic cartoning machine include: medicine board transportation, medicine board loading station, manual workstation, lower box device, push box device, batch number device, sealing device, holding device, and reject device.

Today Hualian recommended cartoning machine products:

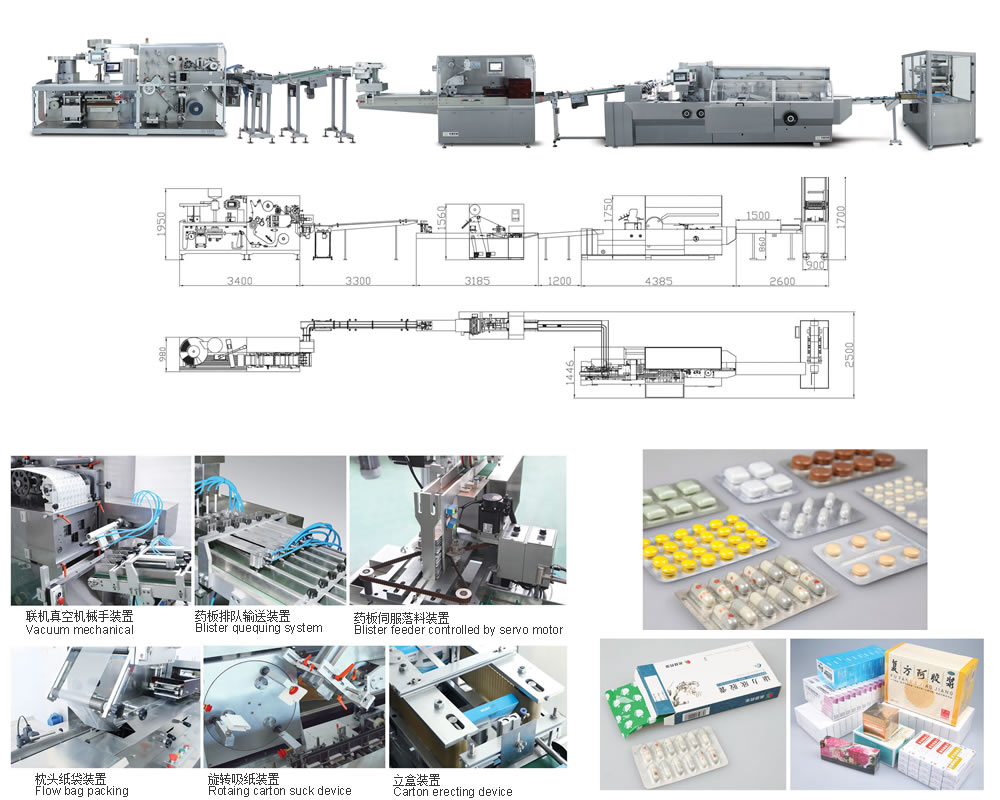

Automatic high-speed blister packaging machine + pillow + cartoning machine + three-dimensional packaging production line

Main Technical Parameter （High speed bister packing machine）

Model		DPH-270D	DPH-330D	DPH-380D
Punch Frequency		60-180次/分times/min	60-180次/分times/min	60-180次/分times/min
Max. Forming area		240×260mm	240×320mm	240×370mm
Max. Forming depth		13mm	13mm	13mm
Traction stroke		Punch:20-120mm Forming:80-250mm
Blister specification		Standard:80×57、95×65、103×43(Customized allowed)
Packing material	Cold aluminum	0.14-0.16×270mm	0.14-0.16×330mm	0.14-0.16×380mm
	Standard PVC hard sheet	0.15-0.5×270mm	0.15-0.5×330mm	0.15-0.5×380mm
	Standard PTP Aluminum foil	0.02-0.035×270mm	0.02-0.035×330mm	0.02-0.035×380mm
	Average hole diameter of roll	70-76mm	70-76mm	70-76mm
Air consumption		≥0.3m3/h Pressure：0.6-0.8Mpa
Mould cooling		tap water or recycle water 60L/h
Total power		20KW	21KW	22KW
Main motor		2.2KW	3.0KW	3.0KW
Overall dimension (L×W×H)		4100×980×1750mm	4100×980×1750mm	4100×1030×1750mm
Weight		3000Kg	3300Kg	3500Kg

Main Technical Parameter （High speed cartoning machine）

Model	ZHJ-200	ZHJ-260	ZHJ-400
Cartoning speed	≤200(ctns/min)	≤260(ctns/min)	≤400(ctns/min)
Carton size (L×W×H)	(50-200)×(20-80)×(15-60)mm	(55-200)×(25-85)×(15-70)mm	(50-200)×(20-80)×(15-60)mm
Leaflet size (L×W)	(100-260)×(100-180)mm	(100-260)×(100-180)mm	(100-260)×(100-180)mm
Power	380VAC, 50HZ 5KW	380VAC, 50HZ 5KW	380VAC, 50HZ 5KW
Main motor	2.2Kw	2.2Kw	2.2Kw
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Air consumption	≥5m3/h	≥5m3/h	≥5m3/h
Overall dimension	4500×1500×1700	4500×1500×1700	4500×1500×1700
Weight	3500kg	3500kg	4000kg
