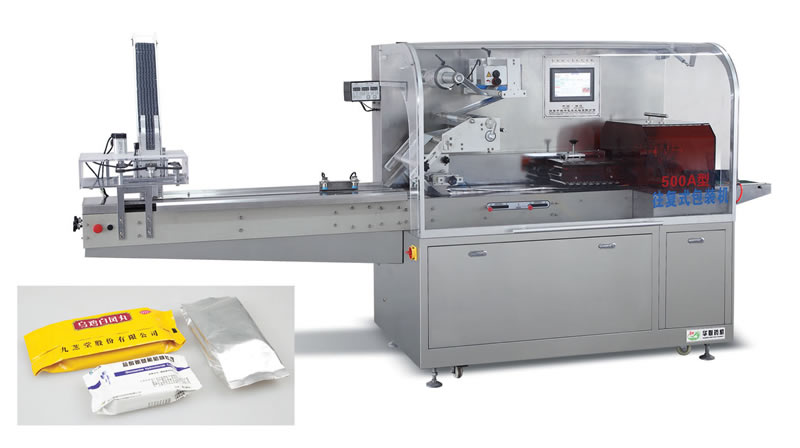

GZB-500Reciprocating Automatic Folw Packing Machine


Reciprocating Automatic Folw Packing Machine is designed for the second packing of the ALU-PVC tablet in the pharmaceutical industry, to improve the moisture resistance and increase the lightproof. This machine adopts PLC to make it programmable. The reciprocating end sealing mechanism, official firmly, cutter lossless expendable, the end closure gusseted device, making bags more beautiful, improving product quality, saving packing costs. Equip with automatic coding device that can print the production date, batch number, expiry date and others on the packaging.

Main Technical Parameters:

Production speed 40-160 Bags/min (Depending on packing materials)
Bag size Length 80-160mm,Width 40-80mm,Thick 1-60mm
Expand the width of packaging film 80-400mm
Packaging Materials Aluminum foil, Aluminum laminated films, composit membrane
Packaging material thickness thicknisss range 0.03-0.07mm.
Rated frequency 50Hz
Air Compressor >0.15m3/min
Rated voltage 220V
Total power 3.5kw
Weight 1100kg
Dimensions (L×W×H) 3700×970×1700mm
