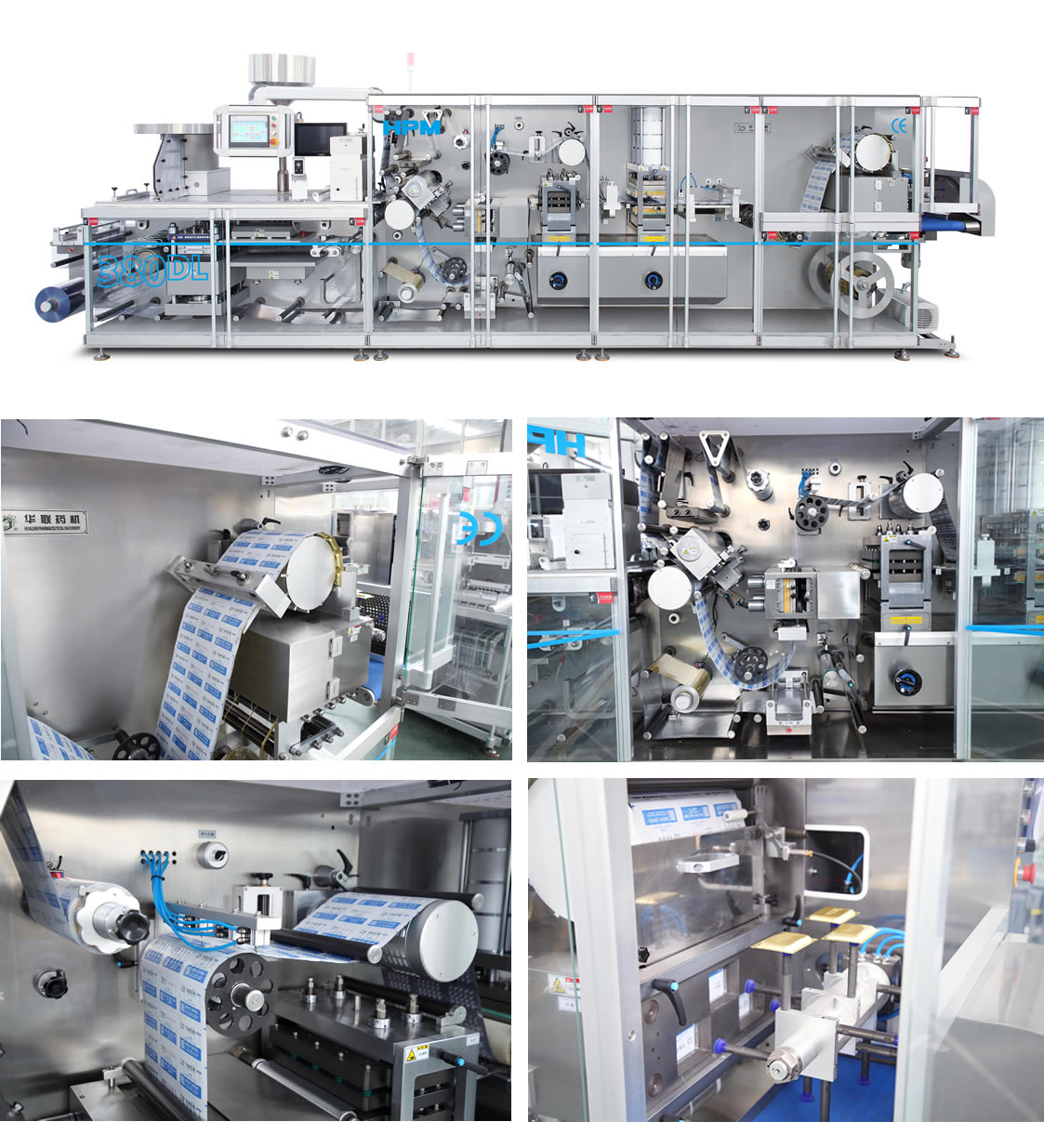

DPH-270/380DLHigh-speed Tropical Aluminum Blister Packing Machine

High-speed Tropical Aluminum Blister Packing Machine adds forming and sealing process of tropical aluminum on the basis of DPH-270D, in order to improve the way of sealing, moisture proof, and light avoiding, to raise the value of the product. It is suitable for packing all kinds of products in pharma, healthcare industries.

Technical characters

Fast mould change, push oriented, without using tools.
Adopt servo traction, simple to set up, convenient to debug.
Push oriented punch way to install the mould. It's no need to dismantle the suck nozzles if equipped with inspection and rejection system.
Long distance between two heating plates of forming when the machine stops, to avoid PVC excessively heated and softened.
Optional configurations include camera inspection and rejection device, mechanical hand structure with suck heads, automatic vibration guide rail feeder, etc.
Can be equipped with servo motor and eye mark register device.

Main technical parameters

model DPH-270DL DPH-380DL
punching frequency 50-105 times/min 50-105 times/min
Maximum molding area 240×260mm 360x230mm
Maximum forming depth 13mm 13mm
Traction stroke Blanking: 20-120mm Forming: 80-250mm Blanking: 20-120mm Forming: 80-250mm
Packaging Materials cold aluminum 0.15-0.5 × 270mm 0.15-0.5×380mm
Standard PVC Rigid Sheet 0.02-0.035×270mm 0.02-0.035×380mm
Standard PTP aluminum foil 0.09-0.15×270mm 0.09-0.15×380mm
The diameter of the reel is 70-76mm 70-76mm
Air consumption ≥30  m3/h (self-provided) Pressure: 0.6-0.8Mpa ≥30  m3/h (self-provided) Pressure: 0.6-0.8Mpa
mold cooling Tap water or circulating water 60L/h Tap water or circulating water 60L/h
total power 380v/50Hz  28kw 380v/50Hz  28kw
main motor 3.0KW 3.0KW
Dimensions 6550×980×1750mm 6550x1030x1750mm
Total Weight 4500Kg 5000Kg
