Cartoning machine secondary equipment facilities professional maintenance (once a year)
Twelve specifications for the maintenance of the secondary equipment of the cartoning machine
(1) Disassemble and inspect the bottle, the chain of the bottle refilling system is well lubricated, and there is no mechanical wear and broken teeth that obviously cause loss of function.
(2) Disassemble and inspect the bottle, the bearing sleeve of the bearing of the bottle refilling system is in good condition, whether it runs smoothly and has no abnormal noise.
(3) Disassemble and inspect the bottle, the drive chain of the bottle refilling system is seriously worn, and the lubricating oil is replaced.
(4) Disassembly and inspection The cartridge cam mechanism of the inspection box system is well lubricated, with obvious wear and abnormal noise.
(5) Check whether the pusher drive belt of the input machine system has slippage, whether the sliding bearing and the sliding guide are worn out and replace the lubricating oil.
(6) Check if there is any slippage in the bottle pusher drive belt of the box entry system, whether the sliding bearing and the sliding guide are worn seriously and replace the lubricating oil.
(7) Check the open-case sliding bearing of the cartoning machine
system, whether the sliding guide is worn out and replace the lubricating oil.
(8) Check if the main drive shaft of the closing box of the cartoning system is deformed.
(9) Check if the wear between the transmission helical gears of the cartoning machine system is serious and replace the lubricating oil.
(10) Check if the drive link of the cartoning system is deformed.
(11) Check if the main drive belt of the folding machine has cracks, notches, missing teeth and slip.
(12) Check if the drive shaft of the paper folding machine is worn out seriously and whether there is slippage.

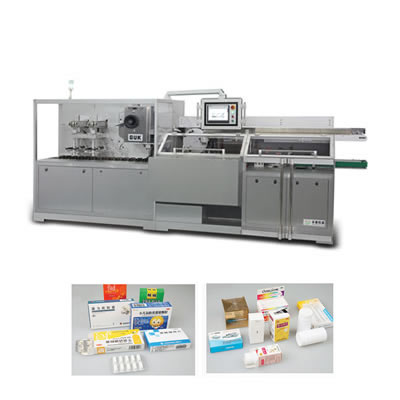

Automatic High Speed Cartoning Machine is suitable for packing blisters, tubes, ampoules and other related objects into boxes. It can run continuously and the highest speed can up to 370boxs/min. It has advantages of high packing efficieny and good quality, and is hi-tech Product with structure of mechanical-electrical integration. This machine can fold leaflet, open box, insert blister into box, emboss batch number and then close or seal automatically. It adopts frequency invertor to adjust speed, human machine interface to operate. PLC to control. and photoelectric to supervise and control each station. So that once something unexpected happens, it will stop and display the reasons automatically, which can solve the troubles in time. This machine can be used separately, and al.......
Automatic Cartoning Machine is suitable for packing blisters, tubes ampoules and other related objeces into boxes intermittently. The higjest speed can up to 150boxes/min. It has advantage of high packing efficiency and good quality. This machine can fold leafIet, open box, insert blister into box, emboss batch number and close box automatically. It adopts inverter to adjust speed, human machine interface to operate, PLC to control. and photoelectric to monitor and control each station automatically, so that once something unexpected happen, it will stop and display the reasons automatically, which can solve the troubules in time. This machine can be used separately andalso can be linked together machine to be a Production line. Note: this machine canalso equip with hot meltglu.......
Automatic Tube Filling and Sealing Machine Cartoning Machine Packing Production Line is a high technical integrative equipment which successfully developed and designed on the base of years experiences of developing autom-atization machine ,it's adopted with PLC, human-machine interface operation panel, and it can automatic execute tube supply, photoelectrical register, filling and sealing batch number printing, finished product output, instruction Paper folding, box open, object feeding into box, batch number (including manufacture date) print, and boxes edge sealing. It also can be equipped with 3-dimensional film packing machine, heat shrink packing machine, case packing machine as production 1ine, suitable for large batch production. ....
